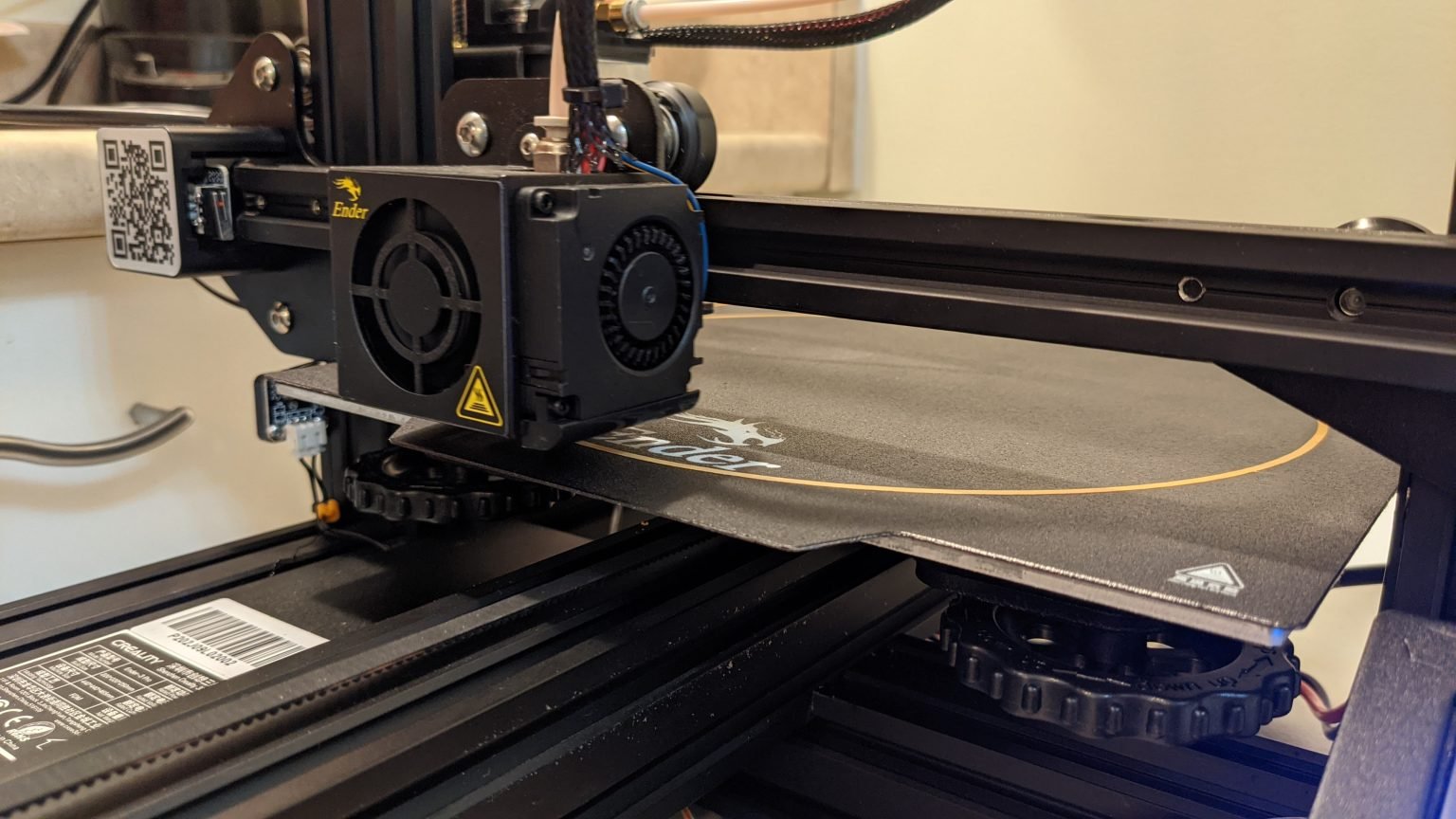

The printer is photographed at plate level with nothing on the plate. Manufacturer labels are visible on the machine; this study is about the arrangement of parts, not the brand, and implies no endorsement.
Callouts
- The print head carries a round fan grille on its face and a smaller blower beside it.
- A warning label sits on the lower corner of the print head.
- Black aluminium rails form the frame and the gantry.
- A printed circular outline marks the plate.
- Large knurled knobs sit under the corners of the plate.
Bill of materials (as seen)
| Part | Qty | Note |
|---|---|---|
| Print head | 1 | Parked left of centre |
| Fans | 2 | Round grille and blower |
| Build plate | 1 | Empty |
| Levelling knobs | 2 visible | Under the plate |
Revisions
Rev A · 29 Jul 2026 · First look
Recorded the print head, fans and plate.
Rev B · 14 Aug 2026 · Frame
Added the rails and knobs. Print quality is not assessed; nothing is being printed in the photograph.
