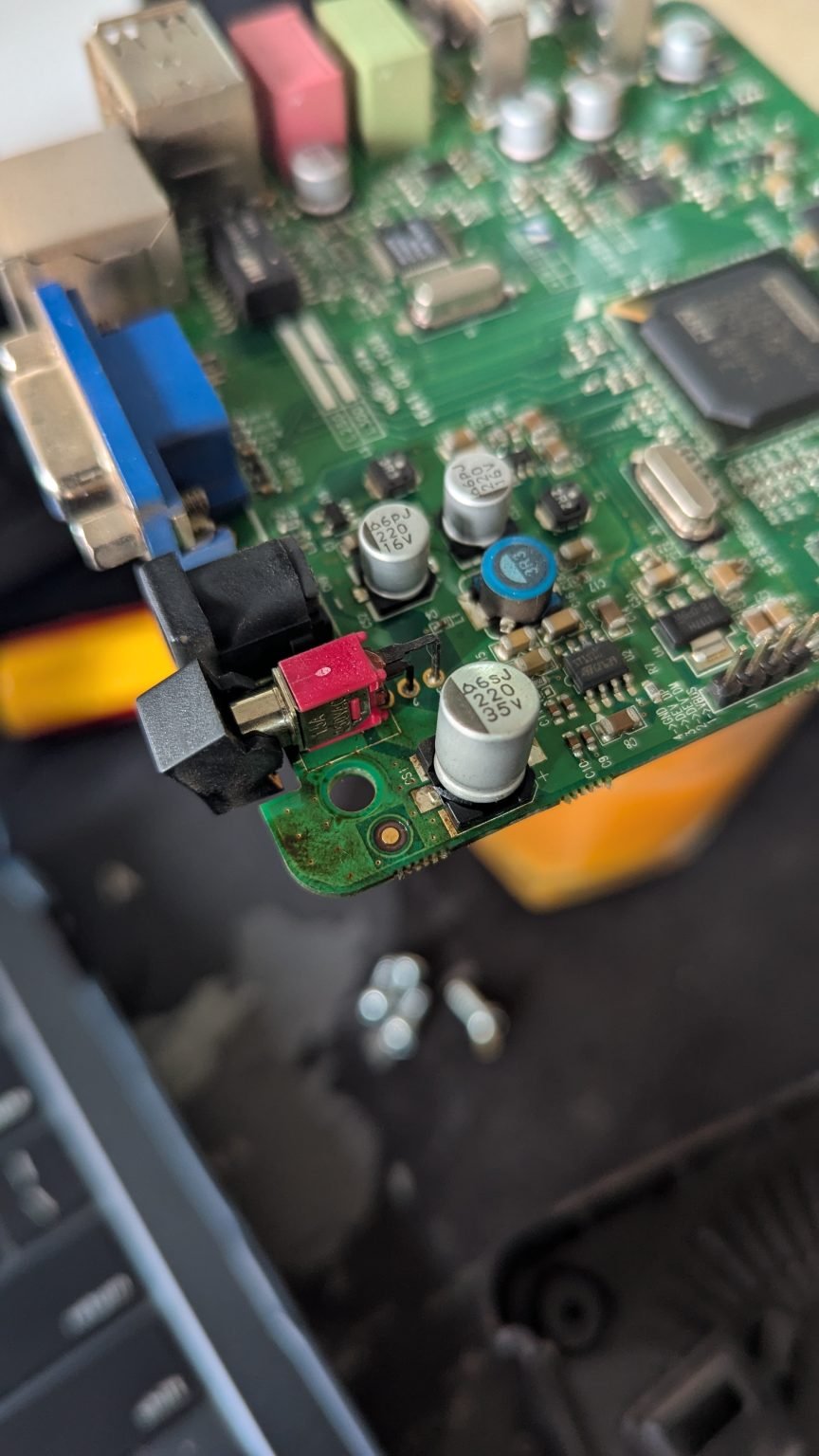

The board is held at an angle above a dark workspace, with loose screws resting below and a laptop keyboard at the edge of the frame. Printed values are visible on several parts; this sheet does not rely on them.
Callouts
- A blue multi-pin connector with a metal housing runs along the left edge.
- Cylindrical capacitors stand in a loose cluster near the corner.
- A small red switch sits beside a black socket.
- A large square chip is visible towards the top right, out of focus.
- Brown residue surrounds the corner mounting hole.
Bill of materials (as seen)
| Part | Qty | Note |
|---|---|---|
| Blue edge connector | 1 | Left edge |
| Cylindrical capacitors | Several | Near the corner |
| Red switch | 1 | Beside the black socket |
| Square chip | 1 | Top right, soft focus |
| Loose screws | Several | Below the board, not fitted |
Revisions
Rev A · 12 Aug 2026 · First look
Listed the edge connector and the capacitor cluster.
Rev B · 26 Aug 2026 · Corner detail
Added the residue around the mounting hole. Its cause is not stated; the photograph does not show it.
